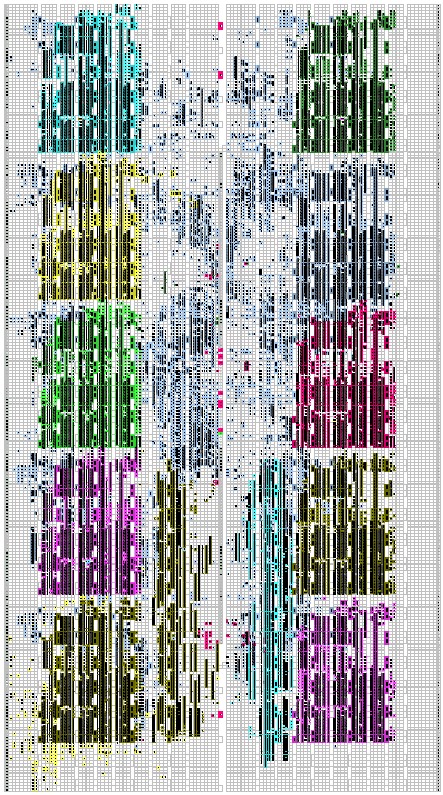

 | 250 MHz XCV4SX55-10 on
Pentek board |
| Digital input is 500 MS/sec digital IF |
| each channel independently tuned with <1Hz tuning
resolution |
| independent 5KHz to 40 MHz bandwidth and decimation
ratio for each channel |
| independent set of 1024 pre-programmed steering
vectors and weights for each channel |
| 60dB SNR, 1.5 shape factor bandpass |
| 240 FPGAs are cascaded for a 240 element phased array
antenna |
